Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Product Categories
DUALRAYS LIGHTING Co.,LTD.
Contact Now

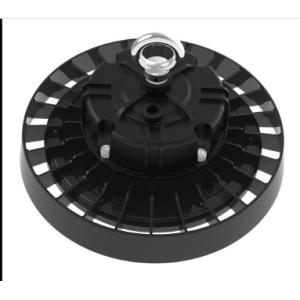

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Brand Name : DUALRAYS

Model Number : DR-HBXXX-CG1

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 1pcs

Price : Negotiated

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 50000PCS/Month

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package/OEM and ODM Package Available

Rated Power : 100/ 150/ 200/ 240W

Input Voltage : AC90-305 50/60HZ

Beam Angle : 60°/90°(with lens)/120°(without lens)

LED Driver : 5 Years

Efficiency : 140Lm/W (± 5%)

LED Chips : Lumiled SMD3030

Contact Now

Dualrays HB3 Industrial High Bay Light Light Replacement with Lower Price and Better Quality IP65

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

SAN'AN High Brightness SMD3030 LEDs;

DUALRAYS Own-developed Non-isolated Driver;

IP65/IK08 Protection;

60°/90°(with lens)/120°(without lens) beam angle optional;

D-Mark tested for the use in paper production,wood processing etc with toughened glass;

Multiple installations: loop hanging, ceiling mounting, wall mounting, pipe mounting;

Various intelligent control: 1-10V,Daylight sensor,Zigbee and Emergency;

Customized supported for special projects

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Model No.
DR-HB100-CGXP
DR-HB150-CGXP
DR-HB200-CGXP
System Watts/W
100W
150W
200W
System Efficiency/LPW
140LPW / 160LPW Optional
Lumen Output/lm
14.000 / 16.000±5%
21.000 / 24.000±5%
28.000 / 32.000±5%
Rated Input Voltage/V
AC100~277V, 50/60Hz
LEDs Light Source
SMD2835 (1W)
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
60°/90°/120° Optional
UGR
<25
Surge Protection
3.75~4KV SPD built in Driver
LED Driver
DUALRAYS Own-developed High PF Non-isolated Driver
IP Rating
IP65
Dimming(Optional)
0/1-10V/Zigbee
Sensor(Optional)
Motion Sensor,Daylight Sensor
Emergency(Optional)
Available (30W @ 3Hrs for Standard)
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs
60.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)
Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Character/Power
100W
150W
 200W
240W
Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs
A
Ø250mm
Ø300mm
 Ø340mm
Ø340mm
B
178mm
181mm
 183mm
183mm


Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs
Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs
Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs
Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs
Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs
Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

DALI Device
Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

DALI Intelligent Control Diagram
Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

DALI Intelligent Control Operator Interface
Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs
Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs
